RCR-Force® 12

$1,078.00

RCR-FORCE 12

Hurry, only 2 items left in stock!

Lead Time is at least 2 weeks out.

Download the Installation Guide Here

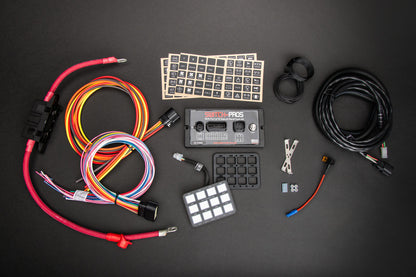

What’s Included?

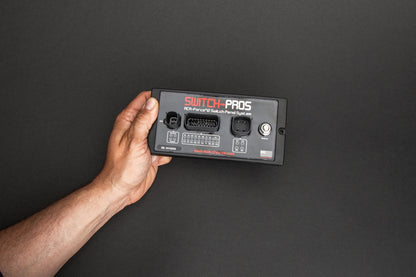

  • Switch Panel and Power Module

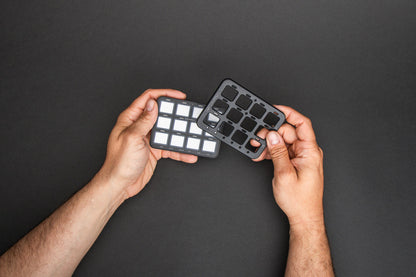

  • RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)

  • 11’ of Communication Cable between Switch Panel and Power Module

  • Power Cable with 150A inline fuse

  • 125 User Selectable Legends included (Horizontal orientation)

  • Installation brackets and hardware

  • 20-pin color coded output harness

  • 4-pin color coded high inrush output harness

  • Detailed installation Guide



Features

  • RGB Backlighting

  • Built-in Bluetooth module for use with free Switch-Pros App

    • Program and operate your panel from any device with access to the iOs or Google Play Store

    • Battery Voltage Readout on App screen

  • Orange LED switch indicators

  • 6 Programmable LED Status indicators



Specifications

  • 150amp capacity with 17 outputs

    • 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)

    • 11 rated @ 15A, which can be combined for larger loads

    • 1 Low Side driver switch, rated @ 2A

      • Adjustable Output Overcurrent Values

  • Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)

  • Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)

  • Power Module Under Hood rating 125°C to -40°C

  • Switch Panel and Power Module Waterproof rating of IP67



Programming & Other Features

  • Preset Dimming function WITH MEMORY (100% to 10% brightness)

  • Master Mode, with ability to turn up to 11 other switches On AND Off with one touch

  • On-On-Off logic

  • Touch Panel lockout

  • On/Off or Momentary

  • Ignition or Battery Input

  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

  • Automatic Power-Up upon vehicle start up

  • Safety Lockout for specific switches

  • Time Delay off

  • No bulky relay box

  • Up to 4 output wires can be assigned to 1 switch

  • Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)

  • Low Voltage Disconnect

  • Sleep Mode for minimal power consumption

  • Daisy Chain up to 3 Switch Panels to One Power Module

Proudly made in the USA!
