Ford OnX6+ 10 Inch Dual Behind Grille Light Bar Kit - Ford 2021-2025 F-150 Raptor, 2024-2025 F-150 Raptor 37/R
SKU: 44-8063
FITS

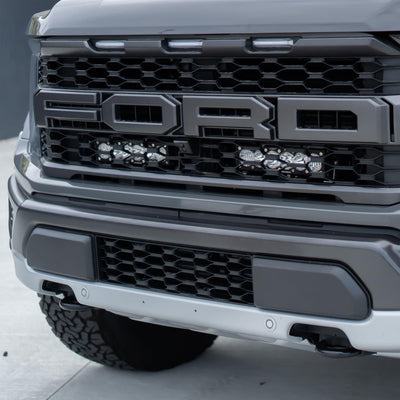

The Baja Designs OnX6+ Behind the Grille kit for the 2021-on Ford Raptor is designed with both functionality and visual appeal in mind. This kit offers two of our powerful OnX6+ 10-inch LED light bars in the choice of clear or baja amber lens colors, mounting brackets, wiring harness and hardware. The OnX6+ 10-inch LED light bar produces 10,817 raw lumens each on high power, cutting through the darkness to illuminate your favorite trails, making this the ultimate behind-the-grille light solution. This kit comes with the lights, mounting hardware and wiring harness. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This kit will not work with adaptive cruise control relocation kits.

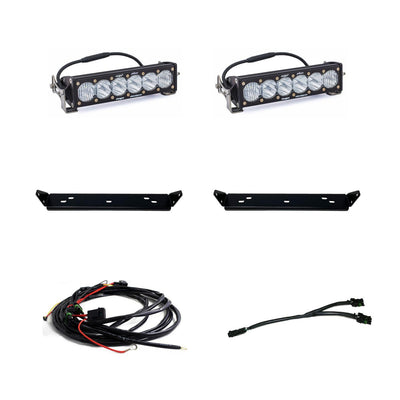

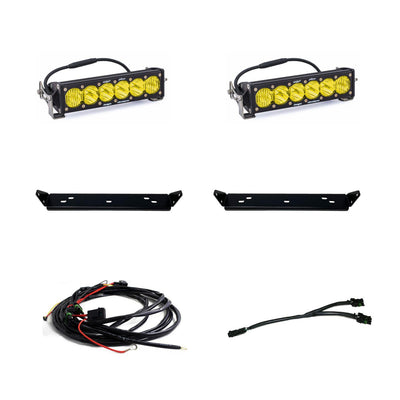

Kit Includes:
- (2x) OnX6+ 10-inch Light Bar - Driving Combo Clear or Baja Amber
- (2x) Behind the Grille Mounting Brackets
- (1x) Splitter Wiring Harness
- (1x) Hi-Beam Wiring Harness
- All Necessary Mounting Hardware
OnX6+ 10-inch Specifications (per light):
- 10,817(high) 9,230 (low) raw lumens
- 106.26W/7.7A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 451003
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
