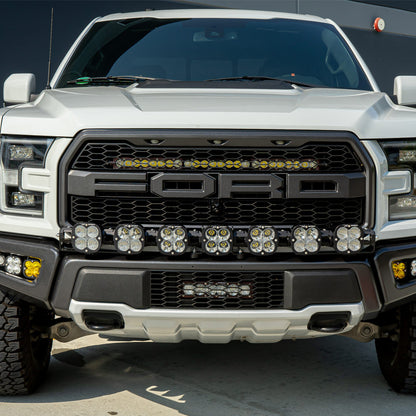

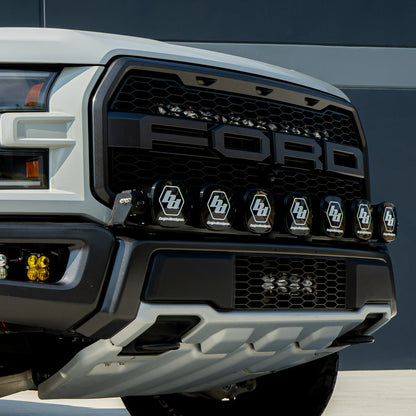

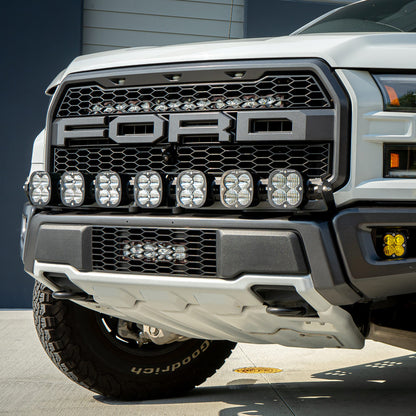

Ford XL Linkable Bumper Light Kit - Ford 2017-20 F-150 Raptor
44-7740
FITS
Full adjustment. Total Performance. The 7XL Linkable LED light bar is designed for Raptor enthusiasts looking to take charge with a light package that is completely customizable for their needs. Choose from 7XL Sport Linkable that offers 22,134 total lumens or the 7XL Pro Linkable producing 28,665 total lumens of forward projected light with a smooth blend due to the use of multiple lens patterns. A main feature, the XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit as a completely independent horizontal adjustment per light allows for arc or straight configurations to perfectly match the lines of your Ford truck. A main benefit of this kit is no hood glare as this kit mounts on the front bumper, providing distraction-free light in front of your vehicle. This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process and seven black rock guards to protect your lights when not in use. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection. This kit is designed for enthusiasts who have a factory upfitter system in their truck or a power distribution unit.
Features:
• XL Linkable system offers 45-degree of vertical pitch adjustment within each light or entire unit
• Independent horizontal adjustment allows for straight or arc configurations
• Pre-Load kit included.
• Black rock guards included.

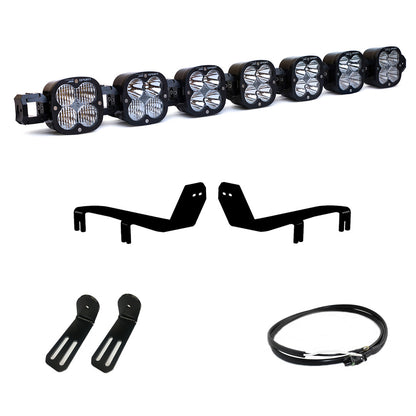

Kit Includes:
• (1x) 7XL Sport or Pro Linkable – Clear, Multi Pattern
• (2x) Mounting Brackets
• (1x) Harness (640163)
• (2x) Pre-Load Kit
• (7x) Black Rock Guards
• All Necessary Mounting Hardware
The Baja Designs Advantage:
• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving Lights at 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 740005
Specifications
| Product Type | XL Linkable LED Light Bar |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 28 |
| Lighting Modes | Beam |
| Light Quantity | 7 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Wiring Harness Included | Yes |
| Wattage (W) | 182 |
| Universal or Specific | Universal |
| Description | 7XL Sport; Multi-Pattern; Clear |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 22,050 |
| Beam Pattern | Multi-Pattern |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 14 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Length (in.) | 45.34 |
| Height (in.) | 4.43 |
| Depth (in.) | 2.8 |
