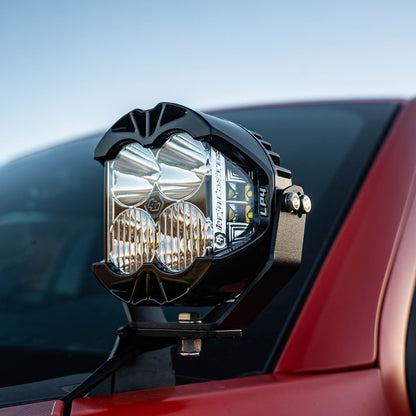

Ford LP4 Pro A-Pillar Light Kit - 2021-2025 Ford Raptor / Raptor R / Raptor 37
44-8068
FITS
The Baja Designs LP4 A-Pillar kit for the 2021-2025 Ford F-150 Raptor/R/37 models is a turn-key solution for any enthusiasts wanting performance lighting on their trucks. This kit is perfect for anyone who is burning the midnight oil off-roading, traveling, or working. With a total of 8,857 lumens and a 200-degree spread of usable LED light, the LP4 delivers 6,885 forward-projecting lumens and 1,972 lumens of dedicated peripheral lighting through Integrated Peripheral Technology (IPT) illuminating zones 1, 2, 3, and 4. To ensure optimal performance, the LP4 incorporates our proprietary Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. This significantly enhances cooling capacity and overall performance. This kit includes everything that you will need and doesn't require any modifications to your truck. The wiring harness is designed to work with the up-fitter switches in Ford Raptors. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.
A-Pillar lights offer several functional and performance advantages for offroad enthusiasts:
- Improved Visibility – A-Pillar, or ditch lighting provide a wide angle of light that fills in blind spots that your headlights don’t cover. This is useful while navigating trails and spotting obstacles such as rocks or drop-offs.
- Elevated Illumination – Their position offers a broader view of terrain, helping to see further into turns and curves.
- Directional Flexibility – Our A-Pillar lights offer adjustability so you can aim them exactly where you need light.
- Auxiliary Functionality – A-Pillar lighting is ideal for: spotlights, flood lighting, scene lighting at a job site or campsite.

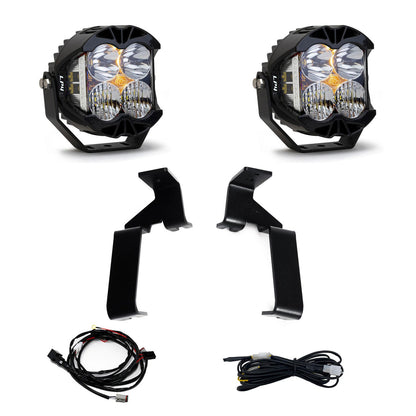

Kit Includes:
- (2x) LP4 Pro, Driving Combo, Clear
- (2x) A-Pillar Mounting Brackets
- (1x) Trigger Switch Harness (640180)
- All Necessary Mounting Hardware
LP4 Specifications (per light):
- Lumens: 8,857
- Wattage/Amps: 75.9W / 5.5A
The Baja Designs Advantage:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses and Optics
- ClearView – All the Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 290003
Specifications
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Weight (lbs.) | 2.800 |
