Ford Squadron Sport Behind Grille Light Kit - Ford 2021-2025 F-150 Raptor, 2024-2025 F-150 Raptor 37/R
44-8061
FITS

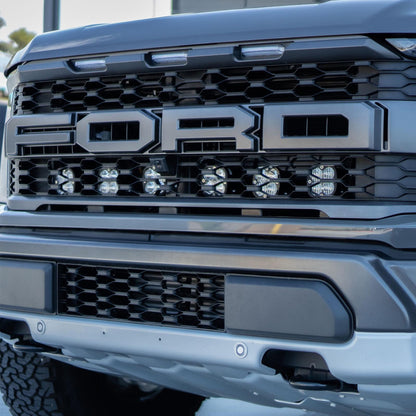

Baja Designs Squadron Sport behind-the grille kit for the 2021-on Ford Raptor are designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports in multiple lens configurations, mounting brackets, and hardware. The Squadron Sport offers 3,162 raw lumens each, giving you the power to cut through the darkness and illuminate your favorite trail. With the combination of wide cornering, driving combo and spot lenses, this kit provides light into lighting zones 1-4, making this the ultimate behind-the-grille kit. The off-road light kit comes with all lights, mounting brackets, wiring harness and all necessary hardware. We have also included an upfitter harness that will allow you to tap your lights into the factory upfitter switches. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This kit will not work with adaptive cruise control relocation kits.

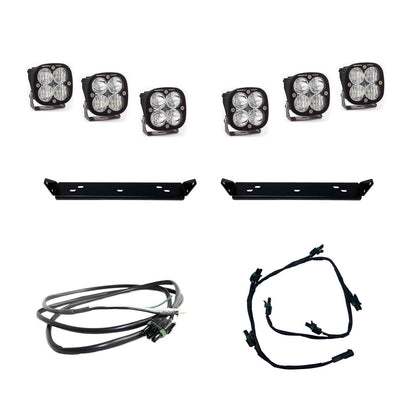

Kit Includes:
- (2x) Squadron Sport - Wide Cornering Clear
- (2x) Squadron Sport - Driving Combo Clear
- (2x) Squadron Sport - Spot Clear
- (2x) Behind-the-Grille mounting brackets
- (1x) Wiring Harness
- (1x) Upfitter Wiring Harness
- All Necessary Mounting Hardware
Squadron Sport Specifications (per light):
- 3,162 raw lumens
- 30W/2.2A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 550003
Specifications
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
SKU: 550001
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
SKU: 550005
Specifications
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
