Ford Squadron/S2 Pro Fog Pocket Light Kit - Ford 2017-20 F-150 Raptor
Ford Squadron/S2 Pro Fog Pocket Light Kit - Ford 2017-20 F-150 Raptor

Baja Designs

Ford Squadron/S2 Pro Fog Pocket Light Kit - Ford 2017-20 F-150 Raptor

$1,405.95

44-7566

Hurry, only 1 item left in stock!

FITS

Ford F-150 Raptor 2017-2020

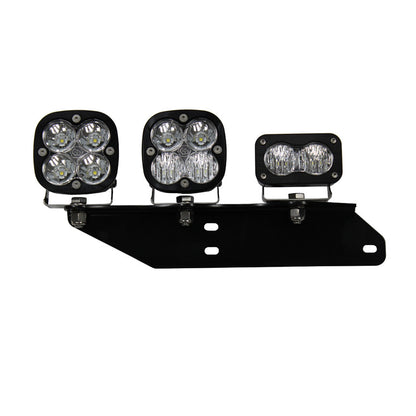

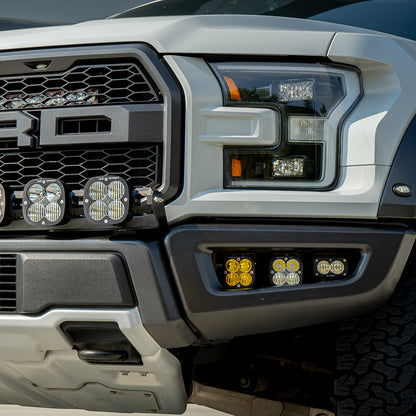

Separate your truck from the pack with the Baja Designs 2017-2020 Ford Raptor "Pro" Fog Light Kit. This kit utilizes four Squadron Pros (4,900 lumens each) and two S2 Sports (1,130 lumens each). This mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use your factory switch.

Included with kit:

SKU: 490001

Specifications

Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 4095
Description Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

SKU: 490003

Specifications

Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology Cree LED (2 Types)
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No
Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

SKU: 540005

Specifications

Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 2
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Sport LED Light Pod
Wattage (W) 12.420
Wiring Harness Included No
Amperage Rating (A) 0.900
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 1581
Description Wide Cornering; Clear
Housing Color Black

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500



Installation instructions
Baja Designs 447566 Installation Sheet
